Chain-link Fencing Machine
Technical Specification
| Mesh Size | 3/4" to 6" (in inches) Possible |
| Wire Material | Galvanized Iron Or PVC Coated |
| Wire Diameter | 16 to 8 SWG |
| Motor Required | 3 hp 960 rpm |
| Machine Weight | 750 kg approx. |
| Features |
|
| Floor Space Required | 5' x 5' (in feet) Main M/c 10' (in feet) wooden bench extra |
| Latest technology |

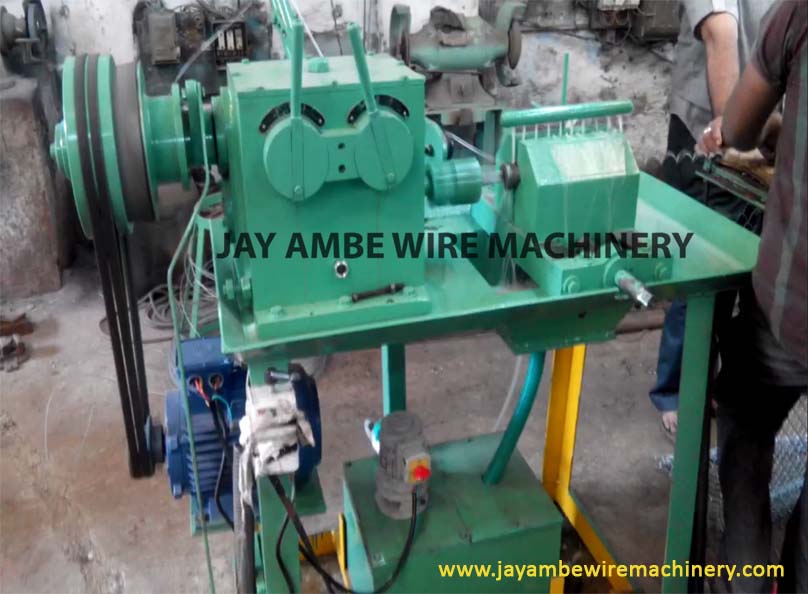

Our semi-automated chain-link fencing machine features a robust four-speed heavy-duty gearbox that efficiently handles both soft and hard-drawn GI wire. Additionally, it can produce various mesh types at different speeds, providing operators the advantage of error-free weaving and consequently enhancing productivity. The machine guarantees high-performance capabilities, occupies minimal floor space, and significantly reduces instances of miss-weaving downtime. 1) Machine is gear oriented and can produces chain link fence in four different speed. It has a mechanical clutch which determines when to produce mesh. 2) Another version of machine has electric pedal (foot switch) instead of mechanical clutch which has a smooth press and electric consumption advantage. |
** All Specifications are subject to change without any prior notice.
Technical Specification
| Mesh Size | 25mm to 100 mm |
| Wire Material | Galvanized Iron Or PVC Coated |
| Wire Diameter | 16 to 8 SWG |
| Power Required | 12 hp connection |
| Machine Weight | 2500 kg approx. |
| Floor Space Required | 18 ft x 18 ft |
| Features |
|
| Floor Space Required | 10' x 4' (in feet) Main M/c |
| Latest technology |

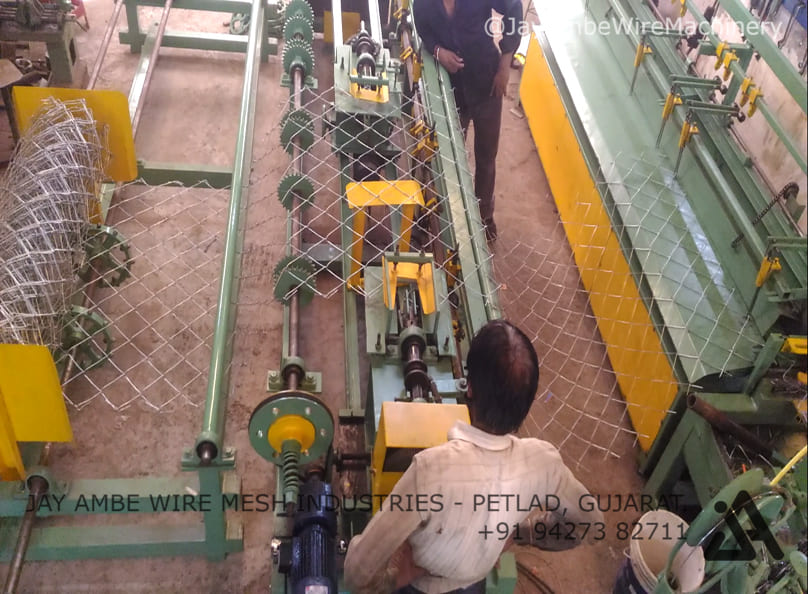

In our fully automatic chain link fencing machine, the wire is fed from the wire-payoff unit and guided through the dies to determine the mesh size. Upon passing through the die, the mesh is automatically fed onto the winding shaft, weaving the chain link fence to the desired length. Following the weaving process, the machine will automatically cut the wire and proceed to the next link. The mesh then proceeds to the subsequent stage, where the edges are twisted or knuckled based on your preference. The final step involves either rolling or compacting the mesh into a roll, tailored to your choice. 1) Machine is controlled by PLC, so one person can operate two set of machines at the same time. Machine is suitable to produce different size of chain link fence. Servo motor and servo drive mechanism with powerful gearbox for accurate control speed, accurate position and stable speed running condition that make the chain link mesh smooth & uniform. |
** All Specifications are subject to change without any prior notice.
